Plug Valve

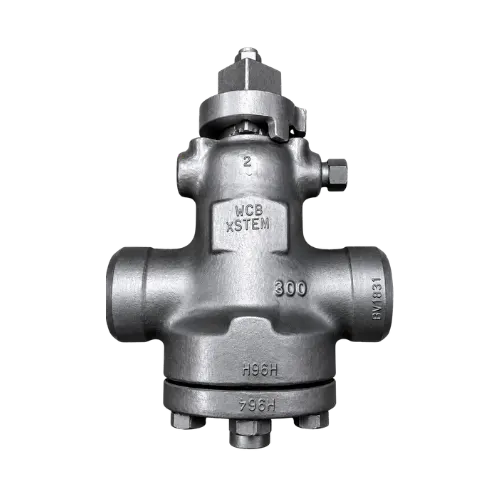

Industrial Plug Valve
Plug Valve Manufacturer & Supplier in Ahmedabad
Xstem Valve Industries manufactures Plug Valves at our facility in Ahmedabad, Gujarat, and supplies them for pipelines that need quarter-turn isolation with a straight-through flow path, including lines carrying slurry and other difficult media. Each valve is built to the size, pressure rating, body material, sleeve or seat and end connection you specify. You can read more about our company and how we work.
As a Plug Valve manufacturer and Plug Valve supplier, we make the industrial Plug Valve and the API Plug Valve for oil, gas, wastewater, chemical and process lines. The rest of our valves are listed on the products page.
Industrial Plug Valve for Demanding Media
Our Plug Valves suit lines where reliable shut-off and an open flow path matter. We match the construction to your line size, pressure and media.
Straight-Through Flow
Full port and regular port openings keep the flow path open, with few pockets where media can collect.
Sleeved & Lubricated Options
Non-lubricated PTFE-sleeved valves need little maintenance. Lubricated tapered plug valves are available for higher-pressure service.
Reliable Shut-Off
The plug turns against the sleeve or body seat to close off the line, and the sleeve or seat material is chosen for your media and temperature.
Wiping Action
As the plug rotates it wipes the seating surface, which helps in lines carrying slurry and thick liquids.
3-Way & 4-Way Ports
L-port and T-port designs, and 4-way multi-port valves, handle diverting and mixing in one valve.
Standards & API Plug Valve Options
For an API Plug Valve we follow API 599 and API 6D, and test to API 598. Please mention the standard you need in your enquiry.
Plug Valve Manufacturer in Ahmedabad
We make and supply industrial Plug Valves ourselves, so when you discuss your order you are talking to the people who build the valve.
-
✓
Direct Manufacturing Plug valves are made by Xstem Valve Industries to the configuration you need.
-
✓
Lined & Sleeved Construction PTFE or PFA lined bodies and sleeves can be selected for acids, alkalis and other aggressive media.
-
✓
Application-Based Selection We go through your media, temperature and pipeline requirement before quoting.
-
✓
Fewer Valves in Complex Lines A 3-way or 4-way plug valve can take the place of several 2-way valves in a diverting or mixing line.
-
✓
Actuator Ready ISO 5211 mounting pads allow pneumatic, electric or hydraulic actuators to be fitted.
For automated lines we can supply Plug Valves for actuator fitting, and our motorized valves are also available. Where a line also needs a straight-through quarter-turn valve in clean service, a ball valve can be supplied alongside. To get a quotation, send your details through our contact page.
How a Plug Valve Works and When to Use It
A short guide from our side to help you decide whether a Plug Valve is the right choice for your line.
How it works
A cylindrical or tapered plug with a port through it sits in the valve body. When the port lines up with the pipe, fluid flows through. A quarter turn brings the solid part of the plug across the line and closes it.
Best for on-off and diverting
Plug valves are mainly used for on-off isolation and for routing flow with multi-port designs. To regulate flow, use a globe valve instead.
Other options
For large clean lines, a butterfly valve saves space and weight. For full-bore multi-turn isolation, a gate valve can be supplied.
Plug Valve for Industrial Pipelines
Plug Valves are used in lines that need dependable isolation or flow routing. The right configuration depends on your media and operating conditions.
Crude Oil Pipelines
Used in oil lines, with the body, plug and sleeve material chosen to suit the service.
Natural Gas Lines
Lubricated and metal-seated designs are specified for gas lines, depending on pressure and standard.
Slurry & Pulp
The open flow path and wiping action suit slurry and abrasive pulp lines.
Wastewater
Used in wastewater lines where solids in the media call for a straight-through valve.
Acids, Alkalis & Solvents
PTFE, PFA and special alloy materials can be selected for chemical and solvent lines.
Steam & Process Routing
Suitable for steam lines, and for process lines that need diverting or mixing through 3-way and 4-way valves.
Plug Valve Specifications
Technical data for the Plug Valve configurations we manufacture and supply at Xstem Valve Industries.
| Parameter | Specification / Data |
|---|---|
| Product Name | Industrial Plug Valve |
| Valve Type Options | Non-Lubricated Sleeved, Lubricated Tapered Plug, Eccentric Plug, Fully PFA/PTFE Lined Plug |
| Design Standards | API 599 / API 6D / ASME B16.34 / BS 5353 / ISO 14313 |
| Size Range | 1/2" to 24" (DN15 to DN600) |
| Pressure Rating | Class 150#, 300#, 600#, 900#, 1500# / PN10 to PN100 |
| Body Material Options | Cast Carbon Steel (WCB), Ductile Iron (GGG40.3), Stainless Steel (CF8/CF8M/CF3M), Monel, Hastelloy, Duplex SS |
| Plug Material Options | Stainless Steel (CF8M/316), Carbon Steel Nitrided, Monel, Ductile Iron with PTFE Coating |
| Sleeve / Seat Material | PTFE, RTFE (Reinforced PTFE), PFA, Conductive PTFE, Metal-to-Metal (Hardfaced) |
| Port Configurations | Full Port, Regular Port, Venturi Port, 3-Way (L-Port / T-Port), 4-Way Multi-Port |
| End Connection Types | Flanged RF/RTJ (ASME B16.5), Butt-Weld (ASME B16.25), Threaded NPT/BSP, Socket Weld (ASME B16.11) |
| Operating Type | Manual Wrench / Lever, Manual Worm Gear, Pneumatic Rotary Actuator, Electric Actuator |
| Applicable Media | Crude Oil, Natural Gas, Slurry, Wastewater, Abrasive Pulp, Strong Acids, Solvents, Steam |
| Temperature Range | According to sleeve / seat material and valve design |
| Testing | API 598 / API 6D / BS EN 12266-1 |
Plug Valve FAQs
Answers to the questions we are asked most often about our Plug Valves.
Are you a Plug Valve manufacturer or only a supplier?
We are both. Xstem Valve Industries manufactures Plug Valves in Ahmedabad and also supplies them to industrial customers, so you deal with the maker directly.
What sizes and pressure classes do you offer?
Our Plug Valves are available from 1/2" to 24" (DN15 to DN600) in Class 150#, 300#, 600#, 900# and 1500# (PN10 to PN100).
Do you make API Plug Valves?
Yes. We make API Plug Valves to design standards such as API 599 and API 6D, and they are tested to API 598. Please mention the standard in your enquiry.
What is the difference between sleeved and lubricated plug valves?
A sleeved plug valve has a PTFE sleeve between the plug and body, so it needs no lubricant. A lubricated plug valve uses a sealant injected between the plug and body, and is used for higher-pressure service.
Can a Plug Valve handle slurry?
Yes, the straight-through port and wiping action of the plug suit slurry and thick media. Please share the solids content and flow rate so we can select the right sleeve and body material.
What should I send to get a quotation?
Please share the valve size, pressure class, body and sleeve material, port type, end connection, operating type, media and temperature, plus your delivery location, through our contact page.
Looking for a Plug Valve Manufacturer in Ahmedabad?
Send us your Plug Valve requirement. We will review it, confirm the configuration with you and come back with a quotation.
