Globe Valve

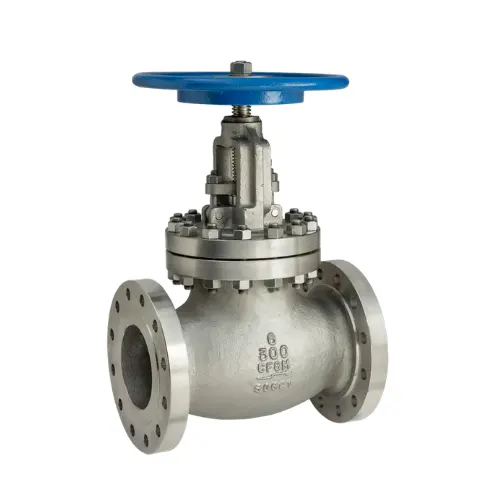

Industrial Globe Valve
Globe Valve Manufacturer & Supplier in Ahmedabad
At Xstem Valve Industries, we manufacture Globe Valves at our facility in Ahmedabad, Gujarat, and supply them for industrial flow-control work. Each valve is built to the size, pressure rating, body material, trim and end connection you specify, so it matches your piping and process requirement. You can read more about our company and how we work.
As a Globe Valve manufacturer and Globe Valve supplier, we regularly handle orders for the industrial Globe Valve and the API Globe Valve, from 1/2" up to 24". If you are comparing valve types, our full industrial valve range is listed on the products page.
Industrial Globe Valve Features
Our Globe Valves are made in configurations that can be matched to your line size, pressure class, body material, trim, end connection and way of operation.
OS&Y Construction
In the OS&Y design the stem threads sit outside the process fluid, and the stem position shows at a glance whether the valve is open or closed.
Flow Regulation
The disc moves straight onto or off the seat, so the valve can be used to adjust flow as well as to open and close the line.
Choice of Disc Type
Plug type, flat, regulating and needle discs are available, so the valve can be matched to how finely you need to control the flow.
Wide Material Range
Body options include carbon steel, alloy steel, low-temperature carbon steel, stainless steel and duplex stainless steel, chosen to suit your media and temperature.
Flexible Operation
Handwheel and bevel gear operation are standard choices. For remote or automated lines, the valve can be supplied for electric actuator or pneumatic cylinder actuator fitting.
API Globe Valve Options
If your project calls for an API Globe Valve, we make it to the design standards listed in our technical data, including API 623 and BS 1873.
Globe Valve Manufacturer in Ahmedabad
We make and supply Globe Valves ourselves, so when you discuss your order you are talking to the people who build the valve. We work from the size, pressure rating, body material, trim, bonnet type, end connection and operating method you need, and we confirm these details with you before the valve is made.
That way an industrial Globe Valve matches your actual operating conditions, instead of being one standard configuration used for every job. The same approach applies when you need an API Globe Valve for a project with a defined specification.
Globe Valves are often ordered along with other valves for the same line. Along with the Globe Valve we also supply gate valves for full-bore isolation and swing check valves to prevent backflow, so one enquiry can cover more than one product.
To get a quotation, send us your valve size, pressure rating, material, end connection and operating arrangement through our contact page and our team will get back to you.
- Carbon Steel Options
- Alloy Steel Options
- Stainless Steel Options
- Duplex Stainless Steel
- Multiple Pressure Classes
- Handwheel / Gear / Actuator
Tell Us Your Globe Valve Requirement
Share your required valve size, pressure rating, body material, trim, end connection and operating arrangement. As the manufacturer, we can discuss the right Globe Valve configuration with you directly and quote accordingly.
How a Globe Valve Works and When to Use It
A short guide from our side to help you decide whether a Globe Valve is the right choice for your line.
How it works
A disc is moved up and down by the stem, straight onto or away from a seat inside the body. The more the disc lifts, the more flow passes, which is what makes adjusting the flow possible.
Best used for regulation
A Globe Valve suits lines where flow has to be adjusted or shut off tightly. Its flow path is less direct than in a gate valve, so for plain full-bore isolation a gate valve is usually the better pick.
Other options
For quick quarter-turn shut-off, consider a ball valve. For larger lines where space and weight matter, a butterfly valve is often used.
Globe Valve for Industrial Flow Control
Globe Valves are used in systems where flow has to be regulated and shut off. The right configuration depends on your process conditions and project specification.
Steam Systems
Used on steam and other high-temperature lines, with the pressure rating and body material set to match the service.
Boiler Applications
Fitted in boiler and boiler feed lines where controlled flow and dependable shut-off are both needed.
Thermal Oil Systems
Material and pressure class can be selected for thermal oil lines that run at high temperature.
Petrochemical Lines
Specified for petrochemical process and pipeline applications that call for a defined material and testing standard.
Gas Applications
Suitable for gas flow-control lines, with the configuration decided by your project requirements.
Industrial Process Lines
A common choice for general process lines that need both flow adjustment and shut-off.
Globe Valve Configuration Options
These are the options you can choose from when you order a Globe Valve from us.
-
✓
Size & Pressure Selection Sizes from 1/2" to 24" and pressure classes from 150# to 2500# (PN10 to PN400) are available.
-
✓
Body Material Options Carbon steel, alloy steel, low-temperature carbon steel, stainless steel and duplex stainless steel bodies.
-
✓
Disc & Trim Selection Plug, flat, regulating and needle disc arrangements, with 13% Cr or Stellite facing.
-
✓
End Connection Options Flanged RF/RTJ, butt-weld and socket-weld ends are available.
-
✓
Operating Arrangements Handwheel, bevel gear, electric actuator or pneumatic cylinder actuator. For automated lines, see our motorized valves.
Globe Valve Technical Specifications
Technical data for the Globe Valve configurations we manufacture and supply at Xstem Valve Industries.
| Parameter | Specification / Data |
|---|---|
| Product Name | Industrial Globe Valve (OS&Y Type) |
| Body / Bonnet Types | Bolted Bonnet (BB), Pressure Seal Bonnet (PSB), Y-Pattern Globe Valve |
| Design Standards | BS 1873 / API 623 / ASME B16.34 / ISO 15761 |
| Size Range | 1/2" to 24" (DN15 to DN600) |
| Pressure Rating | Class 150#, 300#, 600#, 900#, 1500#, 2500# / PN10 to PN400 |
| Body Material Options | Carbon Steel (A216 WCB/WCC), Alloy Steel (A217 WC6/WC9/C5), Low Temp CS (A352 LCB/LCC), Stainless Steel (A351 CF8/CF8M/CF3/CF3M), Duplex SS |
| Trim / Disc Types | Plug Type, Flat Disc, Regulating Disc, Needle Disc with 13% Cr / Stellite Facing |
| Stem Material | SS 410, SS 316, 17-4PH, Monel, Inconel |
| Packing & Gaskets | Die-molded Flexible Graphite with braided end rings / Spiral Wound SS 316 + Graphite |
| End Connections | Flanged RF/RTJ (ASME B16.5), Butt Weld BW (ASME B16.25), Socket Weld SW (ASME B16.11) |
| Operation Modes | Handwheel Operated, Bevel Gear Unit, Electric Actuator, Pneumatic Cylinder Actuator |
| Applicable Media | Steam, Superheated Water, Thermal Oil, Gas, Petrochemical Solutions, Boiler Feed Fluids |
| Operating Temperature | -46°C to +570°C depending on body steel grade and internal trim material |
| Inspection & Testing | API 598 / ISO 5208 / BS EN 12266-1 (Hydrostatic body & seat testing, air seat testing) |
Globe Valve FAQs
Answers to the questions we are asked most often about our Globe Valves.
Are you a Globe Valve manufacturer or only a supplier?
We are both. Xstem Valve Industries manufactures Globe Valves in Ahmedabad and also supplies them to industrial customers, so you deal with the maker directly.
What sizes and pressure classes do you offer?
Our Globe Valves are available from 1/2" to 24" (DN15 to DN600) in Class 150#, 300#, 600#, 900#, 1500# and 2500# (PN10 to PN400).
Do you make API Globe Valves?
Yes. We make API Globe Valves to design standards such as API 623 and BS 1873, and they are tested to API 598. Please mention the standard in your enquiry.
What is the difference between a Globe Valve and a Gate Valve?
A Globe Valve can adjust flow and shut it off, while a gate valve is meant to be fully open or fully closed for isolation. If you need to regulate flow, the Globe Valve is the right product.
Which body materials are available?
Carbon steel (A216 WCB/WCC), alloy steel (A217 WC6/WC9/C5), low-temperature carbon steel (A352 LCB/LCC), stainless steel (A351 CF8/CF8M/CF3/CF3M) and duplex stainless steel. The right one depends on your media and operating temperature.
What should I send to get a quotation?
Please share the valve size, pressure class, body material, end connection, operating type, media and temperature, plus your delivery location, through our contact page.
Looking for a Globe Valve Manufacturer in Ahmedabad?
Send us your Globe Valve size, pressure class, material, end connection and operating requirement. We will review it and come back with a quotation.
